Angular Contact Ball Bearings
Product Overview
Angular Contact Ball Bearings are the most widely used type of rolling bearing, characterized by raceway grooves on both the inner and outer rings that are deep relative to the ball diameter. This structural design allows them to support both radial loads and moderate bidirectional axial loads simultaneously, making them suitable for a broad range of general-purpose and demanding industrial applications alike.
Available across multiple standardized series — including the 60, 62, 63, 68, 69, and MR series — Angular Contact Ball Bearings offer flexibility in load capacity, speed performance, and installation footprint, allowing engineers to select the optimal balance of size and performance for each specific application. Precision grades from P0 to P5 (and higher for select miniature/precision variants) are available to meet requirements ranging from standard industrial use to high-precision rotational systems.
Sealing and shielding options are equally comprehensive, including open type, single and double-sided metal shields (Z/ZZ), non-contact seals (RZ/2RZ), contact seals (RS/2RS), and mid-contact seals (RS1/2RS1), allowing selection based on dust protection, moisture resistance, and friction loss requirements across diverse operating environments.
Technical Specifications
| Series | 72, 73, 74 Series (Single Row); 32, 33 Series (Double Row) |
| Contact Angle | 15°, 25°, 40° |
| Bore Diameter Range | 6mm – 200mm |
| Outer Diameter Range | 19mm – 360mm |
| Width Range | 6mm – 78mm |
| Mounting Configurations | Single, DB (back-to-back), DF (face-to-face), DT (tandem) |
| Cage Material Options | Steel stamped, brass machined, polyamide PA66 |
| Seal / Shield Options | Open, RS rubber seal, 2RS double-sided seal |
| Precision Grades | P0 standard, P6, P5, P4 high precision, P2 ultra-precision (ABEC 7/9 equivalent) |
| Radial/Axial Clearance | Standard, C3 increased (preload classes Light/Medium/Heavy for duplex sets) |
| Material Standard | Gcr15 / 52100 chrome steel, stainless steel SS440 / SS420, ceramic hybrid (Si3N4 balls) optional |
| Temperature Range | -40°C to +150°C standard, up to +250°C high temperature |
| Lubrication | Grease standard, oil optional, dry for open bearings |
| Standards Met | ISO 9001, ISO/TS 16949, ISO 15, DIN 628, JIS |
Key Features

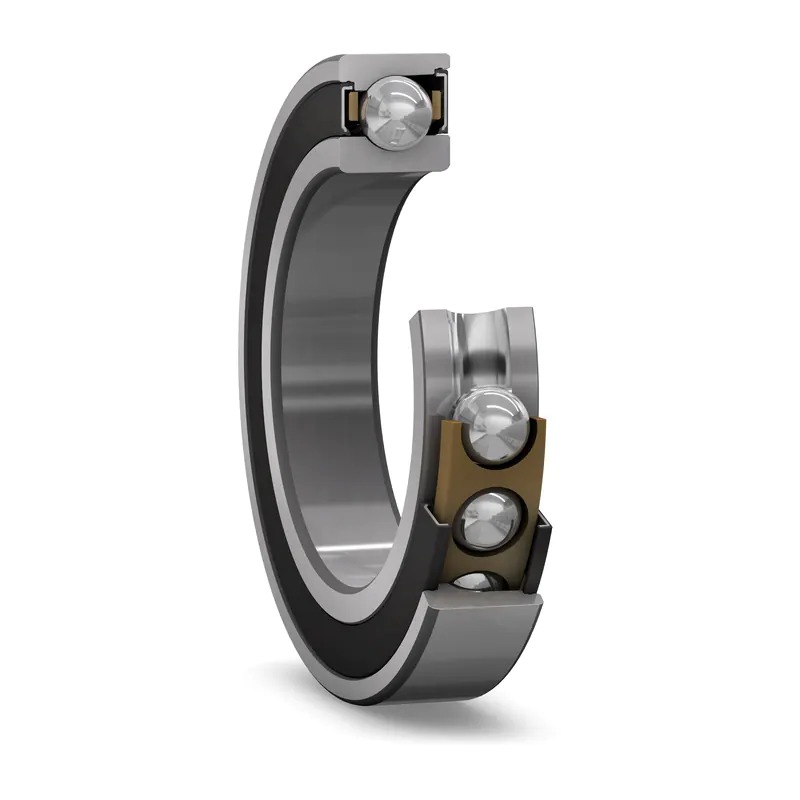

Single-Row Angular Contact Ball Bearings
Single-row angular contact ball bearings feature a single row of balls with raceways on the inner and outer rings designed at a specific contact angle, enabling them to support both radial loads and unidirectional axial loads simultaneously, while offering good rigidity and rotational precision under high-speed operating conditions.
Common contact angles include 15°, 25°, and 40° — the larger the angle, the greater the axial load capacity, allowing flexible selection based on load direction and magnitude. This series features a simple structure and straightforward installation, and is widely used in machine tool spindles, electric motors, pumps, and automotive transmission systems where combined load support is required. Since a single-row bearing can only support axial load in one direction, it is commonly used in paired arrangements (back-to-back DB, face-to-face DF, or tandem DT) in practical applications to achieve bidirectional axial load capacity and greater overall rigidity.
Double-Row Angular Contact Ball Bearings
Double-row angular contact ball bearings integrate two rows of balls within a single bearing unit, with raceways on the inner and outer rings designed at symmetrical contact angles, enabling them to support bidirectional axial loads and substantial radial loads simultaneously — functioning as an integrated equivalent of a paired bearing arrangement without requiring separate matched installation.
This series is characterized by a compact structure, high rigidity, and strong resistance to tilting moments, delivering superior load-carrying capacity and rotational stability compared to single-row bearings within the same installation space. Common contact angles include 25°, 32°, and 45°, and the series is widely used in gearboxes, power transmission systems, construction machinery, agricultural equipment, and other drive systems requiring precise axial positioning and combined load support.
Key features
- Dual-direction load support — handles radial loads and moderate bidirectional axial loads without requiring additional dedicated thrust bearings
- Low friction, high-speed capability — suitable for applications ranging from low-speed heavy-duty operation to high-speed precision rotation
- Simple structure, easy maintenance — non-separable design allows quick installation and replacement without disassembling inner/outer rings
- Broad size range — bore sizes spanning from 2 mm (miniature MR series) to over 150 mm (62/63 series), covering virtually all mechanical scale requirements
- Compatible with grease and oil lubrication, supporting both sealed (maintenance-free) and open (re-lubricable) configurations
- Compliant with international standards, including ISO 15, DIN 625, and ABEC
Applications
Angular Contact Ball Bearings serve as the standard bearing solution across virtually every industry. In electric motors and generators, they provide stable radial and axial support across a wide range of power outputs. In pumps, compressors, and fans, they deliver reliable performance under continuous operating cycles.
In gearboxes and power transmission systems, deep groove ball bearings absorb the combined radial and axial loads generated by gear meshing across a wide range of shaft sizes. Conveyor and material handling equipment rely on their high load capacity and long service life under continuous duty cycles, while the automotive industry uses them extensively in alternators, water pumps, cooling fans, and auxiliary drive systems.
In precision and miniature applications — such as instrumentation, medical devices, optical equipment, and model/hobby drive systems — smaller series (68, 69, MR) provide compact, high-precision rotational support where installation space is severely constrained.
Beyond heavy industry, Angular Contact Ball Bearings are also found in HVAC equipment, textile machinery, packaging lines, household appliances, and consumer electronics, making them one of the most versatile and universally applied bearing types across both industrial and consumer-facing equipment.
Electric Tools
- Read More
Automotive
- Read More
Machine Tools
- Read More
Agriculture Machinery
- Read More
Food and Beverage
- Read More
Robotics
- Read More
Technical Resources
Whether you are an engineer, procurement manager, or equipment maintenance professional, here you will find in-depth content covering bearing operating principles, technical parameter interpretation, industry application analysis, and selection logic — helping you build a comprehensive understanding of bearing products and make more informed decisions in real-world applications.
Angular Contact Ball Bearings A Complete Guide to Structure, Working Principle, Selection, and Applications
- Read More
Bearing Seals and Shields: A Complete Guide to Z, ZZ, RS, RZ, RS1, and 2RS1 Types
- Read More
Select Bearing Metal Materials: Common Standards and Purchasing Guidelines Bearing Metal Materials: Common Standards and Purchasing Guidelines
- Read More
Selection Guide for Deep Groove Ball Bearing Clearance: C3 vs. C0 (CN)
- Read More
FAQs
What loads can deep groove ball bearings handle?
Deep groove ball bearings are primarily designed for radial loads, but they can also handle moderate axial (thrust) loads in both directions. They are not suitable for heavy axial loads or combined shock loads. In those cases, angular contact or tapered roller bearings are preferred.
How do I select the right bearing size for my application?
Selection should be based on bore diameter (shaft size), required load capacity (dynamic rating C and static rating C0), operating speed compared with the bearing limiting speed, available space (outer diameter and width), and required precision grade from P0 to P2. Always apply a safety factor and verify that the calculated L10 service life meets your requirements.
What is the difference between open, shielded (ZZ), and sealed (2RS) bearings?
Open: No built-in protection, requires external sealing, and is suitable for clean environments or oil bath lubrication.
ZZ metal shields: Protect against dust and debris with low friction, making them suitable for high-speed applications, but they are not waterproof.
2RS rubber seals: Provide strong protection against dust and moisture. They are pre-greased and ideal for contaminated environments, but generate slightly more friction.
How often should I lubricate or replace the grease?
For general industrial use, grease should be replenished or replaced every 3,000 to 10,000 operating hours depending on speed, temperature, and environmental conditions. Bearings running above 70 C or in contaminated environments require shorter intervals. Sealed 2RS bearings are pre-greased for life and do not require re-lubrication.
What are the common causes of premature bearing failure?
The most frequent causes include inadequate or improper lubrication, contamination by dirt, dust, or moisture, incorrect installation, misalignment, excessive force during fitting, overloading beyond the rated capacity, improper shaft or housing fits, and fatigue at the end of normal service life.
How is the rated service life (L10) of a bearing calculated?
The basic L10 life is calculated as L10 = (C / P)^3 x 10^6 revolutions, where C is the dynamic load rating in kN and P is the equivalent dynamic bearing load in kN. It represents the number of revolutions that 90% of identical bearings will complete without fatigue failure. In practice, ISO 281 modified life calculations also apply correction factors for lubrication, contamination, material, and reliability.
